2CS3E series drives support operating modes: PP, PV, HM, CSP. The products can be matched with most of master station such as Beckhoff, Omron, Keyence, Panasonic etc.
Closed Loop Stepper Drives, EtherCAT, Leadshine

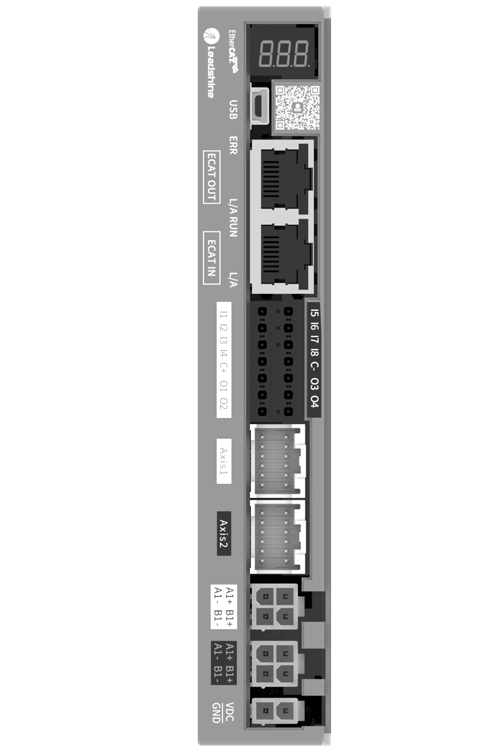

2CS3E-D507
R0,00
- No loss of step, no hunting, no torque reservation
- Dual-axis control via one IP address, support CiA402
- EtherCAT communication
- Support operation modes: Profile Position, Profile Velocity, Homing
- 2*4 configurable digital inputs, 2*2 optically isolated digital outputs include brake output
- Low noise and vibration, smooth motion
- USB port for Leadshine software connection
- Two 7-segment display velocity or slave ID or operation mode or error code
- Over voltage, over current and position following error, encoder cable error, etc. protections
- STO optional
Technical Data
Â
| Model | 2CS3E-D507 |
| Series | 2CS3E |
| Command  Source | EtherCAT |
| Operation  Voltage (VDC) | 20-50 |
| Output  Current (A, Peak) | 7 |
| Input  Frequency (KHz, Max.) | 10 |
| Logical  Voltage  (VDC) | 12-24 |
| # of Inputs | 2*4 |
| # of Outputs | 2*2 |
| Characteristics | Standard |
Technical Data
Â
