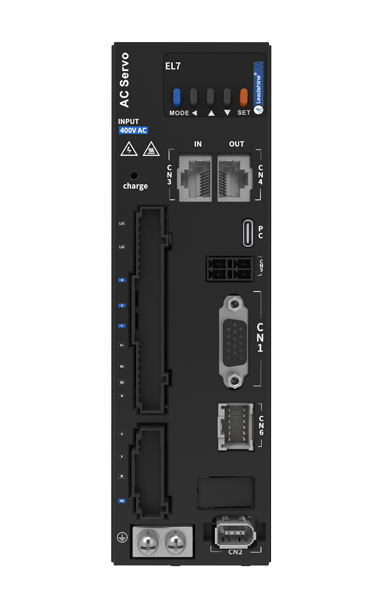

EL7-EC1000NT

R0,00

Servo drive with power rating from 750W to 7500W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe inputs
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments, etc
Matching motors with power rating from 750W to 7500W
Motors with 23-bit magnetic/optical encoders
Optional holding brake

Categories: EtherCAT, Leadshine, Servo Drives

EL7-EC 400V Series AC servo products are high performance AC digital servo which is designed for high accuracy position/velocity/torque control with power rating ranging from 750W up to 7.5kW which provides a perfect solution for different applications with easy tuning process.

EL7-EC Series AC Servo products are using latest digital signal processing (DSP) chip and intelligent power module (IPM). The series comes with highly compacted integration, small volume and great reliability. Also highly competitive using our best PID controls for pulse width modulation (PWM).

Reviews

There are no reviews yet.

Be the first to review “EL7-EC1000NT”

Technical Data

Model	EL7-EC1000NT
Input Voltage	400VAC 3ph
Rated Power (W)	1000
Rated Current (Arms)	3.5
Peak Current (Arms）	10.6
Command Source	EtherCAT
# of Inputs	4
# of Outputs	3
