EM3E series drives support operating modes: Profile Position (PP), Profile Velocity (PV), Homing(HM) , Cyclic Synchronous Position (CSP). The products can be matched with most of EtherCAT controller/PLC such as Beckhoff, Omron, Trio, etc.
EtherCAT, Leadshine, Stepper Drives

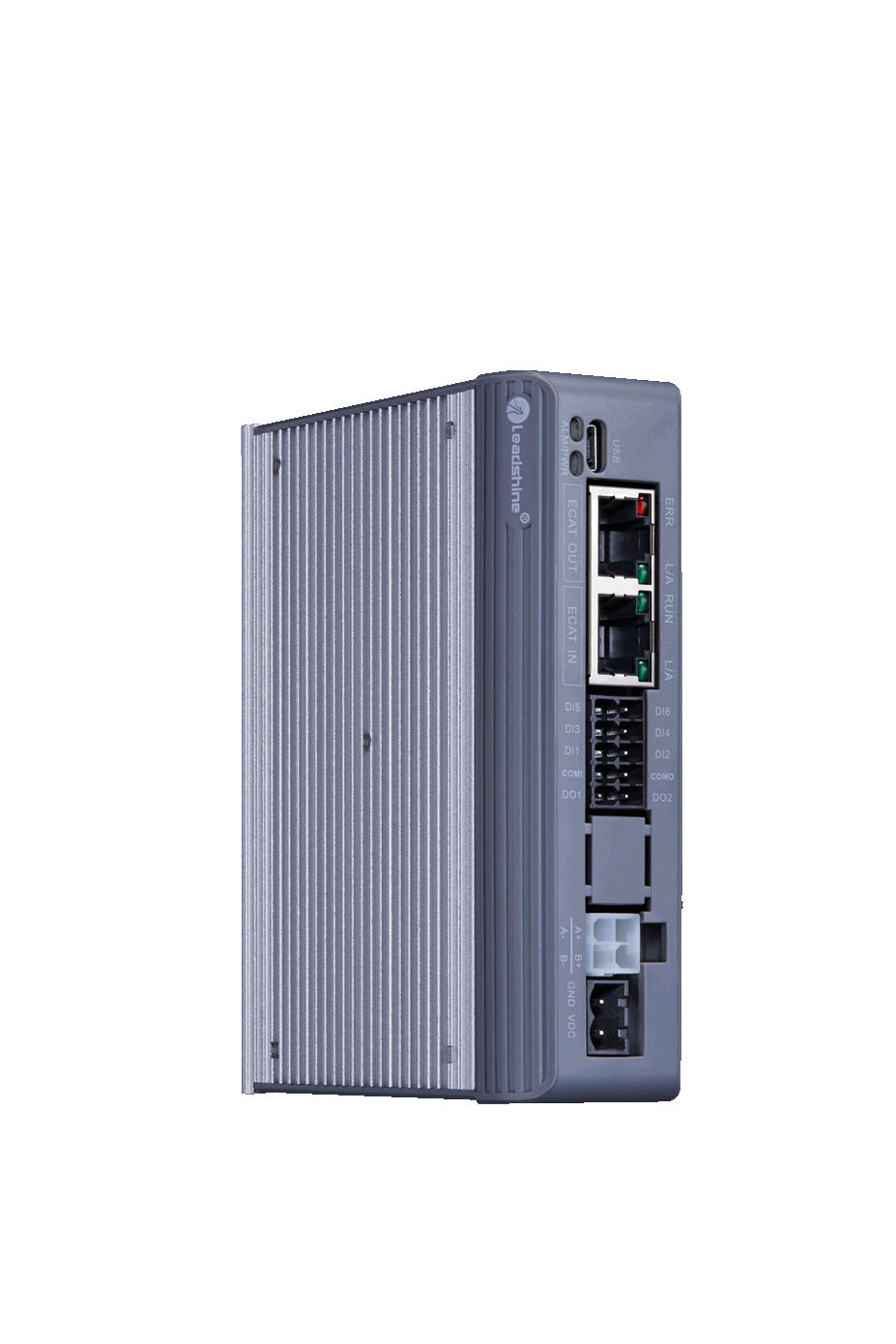

EM3E-870E
R0,00
- ● CANopen over EtherCAT (CoE) with full support of CiA402,100Mbps full-duplex
● Support operation modes: Profile Position, Profile Velocity, Cyclic Synchronous Position, Homing
● 5 digital inputs, 2 optically isolated digital outputs include alarm and brake
● Low noise and vibration, smooth motion
● 20-80VDC supply voltage, max 7.0A output current
● Over voltage, over current, motor cable error protection, etc.
Technical Data
| Model | EM3E-870E |
| Series | EM3E |
| Command Source | EtherCAT |
| Operation Voltage (VDC) | 20-80 |
| Output Current (A, Peak) | 7.0 |
| Input Frequency (KHz, Max.) | 10 |
| Logical Voltage (VDC) | 12-24 |
| # of Inputs | 6 |
| # of Outputs | 2 |
| Characteristics | Standard |
